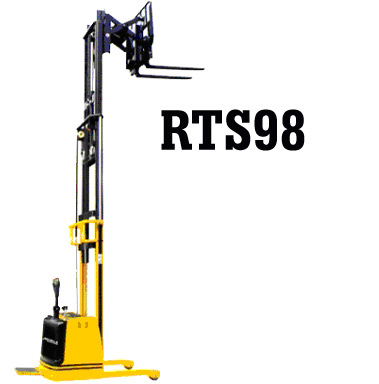

RTS98 Reach Truck Self-Propelled Stacker
Capacities: 2,200 / 3,300 lbs
Lifting Heights: 98" / 118" / 196" / 216"

SPECIFICATIONS
• Reach Distance: 19.5"
• Tilt Angle: 2 degrees (forward) / 5 degrees (back)
• Load Center: 19.6"
• Lowered Fork Height: 3"
• Mast Hgt (Raised): 142" / 158" / 239" / 259"
• Mast Height (Lowered): 75" / 84" / 94" / 100"
• Straddle Legs (Fixed): 44" O.D.
• Fork Length: 42"
• Overall Fork Width: 25.5" O.D.
• Fork Adjust: 8" - 31.5" O.D.
• Backrest Height: 40.5"
• Overall Length: 84"
• Travel Speed with Load: 2.5 mph
• Travel Speed w/o Load: 3.4 mph
• Battery: 24V / 320Ah
• Charger: 24V internal
• Lift Motor Power: 2.2kW
• Turning Radius: 83"
• Service Weight: 3,420 / 3,495 / 4,299 / 4,519 lbs

OPTIONS
None

» AVAILABLE FOR DEMO USE
» ESTIMATED SHIP TIME FACTORY (STANDARD SIZES): 3-4 WEEKS
» NO ASSEMBLY REQUIRED

ORDERING ASSIST
Call Mobile: 800 527 4612
Local: 905 279 5370

Mon - Fri: 8am - 4:30pm EST

The RTS98 has low-profile maneuverability of a walk-behind stacker, the capability of a counterbalanced unit, and the reach function of a forklift...perfect for any warehousing job, side-loading trailers, and unloading trucks where there is no loading dock.

An affordable and fully-functional alternative to traditional forklift trucks, the RTS’ heavy-duty double stage steel mast and carriage is capable of tilting up to 2 degrees forward and 5 degrees backward, and a hydraulic scissor-style function enables the forks to 'reach' out to an additional 19.5” – perfect for stacking or moving loads onto deeper shelving or storage.

A foldable ride-on platform is standard, and it features an upgraded control handle which combines a ‘soft start/stop’ acceleration/deceleration function, lift, lower, and emergency stop. Adjustable forks, polyurethane wheels, safety screen, and high-strength steel construction make it both durable and well-suited for any application.

***

• Handle: Lift/lower, forward/reverse switch, 'dead man' brake, horn, low-speed switch

• Frame: One-piece heavy duty guage steel carriage with high-strength tri-stage steel mast

• Braking: Electromagnetic with 'dead man' stop feature; automatic neutral braking when throttle is released; permanent stop when handle is within 20 degrees of full vertical or horizontal position

• Drive Wheel: Parallel mounted on vertical drive wheel for easier inspection and tight turning radius

• Drive Motor: AC Motor requires minimal maintenance. Hall-effect throttle requires no mechanical adjustment and eliminates high-wear components; CANBUS technology reduces wiring complexity adjustment

• Controller: CURTIS, multi-option and programmable

• Reach: Solid steel panograph carriage with greased bearings on all pivot and contact points

• Electrical System: 24V electrical system with key switch and battery life indicator; high-output pnboard charger; emergency power disconnect

***

» RTS98 Cut Sheet

» RTS22 Parts Breakdown

» RTS33 Parts Breakdown

The RTS98 includes 12 months parts only warranty on the component parts, Hydraulic Unit and Frame. The Self-Propelled attachment and Charger are subject to the original manufacturer's 12 month warranty and the Battery is subject to the original manufacturer's 12 month prorated warranty written policy
