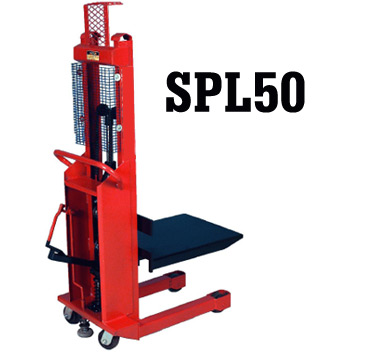

SPL50 Pedal Lift Stacker
Capacity: 1,000 lbs
Lift Height: 50"

SPECIFICATIONS
• Load Center: 20"
• Lowered Platform: 4.5"
• Raised Platform: 50"
• Overall Mast Height: 64"
• Overall Width: 20"
• Overall Length: 34"
• Platform Size: 18" x 24"
• Weight: 350 lbs
• Casters: 4" Phenolic
• Front Wheels: 4" Phenolic

OPTIONS
None

» AVAILABLE FOR DEMO USE
» ESTIMATED SHIP TIME FACTORY (STANDARD SIZES): 3-4 WEEKS
» NO ASSEMBLY REQUIRED

ORDERING ASSIST
Call Mobile: 800 527 4612
Local: 905 279 5370

Mon - Fri: 8am - 4:30pm EST

The Mobile SPL50 is compact and able to handle heavy duty applications and still fit through most standard doorways. Features manual push/pull, foot pump lift design, floor lock brake and safety cage. Built with the same durable constuction as the battery models, the SPL50 is best suited within combustable enviroments where battery sparks are prohibited.

***

• Frame: Rugged heavy-duty constructed of formed and welded steel for extra strength

• Mast: Fabricated with channel steel for greater strength and dependability. Open structure design complete with safety cage for greater operator visibilty

• Lifting Chain: Unique dual lifting chains are roller style, heavy duty steel exceeding a 6:1 safety factor

• Hydraulic System: Durable cylinder features a chrome plated ram and a relief valve for overload protection

• Platform: Heavy duty steel 18" wide x 24" long

• Pump (Foot Operated): Leakproof rebuildable foot pump (with overload capacity, a hard chrome plated ram/piston, and urethane seals and wipers throughout) that lifts 3/4" per pump

• Steering: 5" Phenolic rear casters for easy maneuverability

• Wheels: 4" phenolic wheels with roller bearings located in the straddle legs

• Brake: Foot release floor lock that secures the entire unit in place

***

» SPL50 Cut Sheet

The SPL50 includes 12 months parts only warranty on the component parts, Hydraulic Unit and Frame

» Warranty Policy
