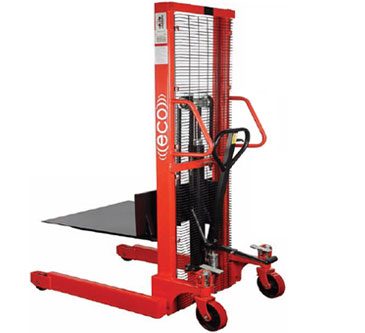

ECO “EMS22N” Adjustable Fork Manual Hydraulic Stacker

ECO “EMS22N” Adjustable Fork Manual Hydraulic Stacker

Product Description

watch-video

download_product_btn   parts_breakdown_btn

SKU: EMS22N Category:

Overview

Mobile’s Manual Hydraulic Stackers provide users with a safe and efficient means of lifting and stacking pallets and other material goods. Each Manual Hydraulic Stacker is designed to lift and transport pallets and is ideal for unloading trucks in facilities without loading docks.

Specifications

• Capacity: 2,200 lbs
• Min. Fork Height: 2.75″
• Max. Fork Height: 63″ / 98″ / 118″
• Lowered Mast Height: 78.15″ / 72.25″ / 82″
• Raised Mast Height: 78.15″ / 120″ / 139.76″
• Fork Length: 36″
• Overall Fork Width: 8.5″ – 33.5″
• Overall Length: 56″
• Straddle Legs I.D.: 36″ – 48″
• Straddle Legs O.D.: 43″ – 54″
• Load Rollers Dia.: 5 x 2.7″
• Steer Caster Dia.: 7″ x 2″
• Weight: 705 / 795 / 850 lbs

• Adjustable Forks/Straddle Legs
• Heavy Duty Steel Construction
• High-Quality Powder Coat Paint Finish
• Hand or Foot Pump Operation
• Mechanical Parking Brake
• Lightweight/Compact for easy manoeuvrability
